Study Guide Overview

This study guide covers Boolean logic for the AP Computer Science Principles exam. It focuses on Boolean variables, relational operators (==, !=, >, <, >=, <=), logical operators (NOT, AND, OR), and truth tables. It also explains common mistakes, operator precedence, and provides practice questions involving conditional statements and combining Boolean logic with other programming concepts.

#AP Computer Science Principles: Boolean Logic - The Night Before

Hey! Let's get you prepped for the exam. We're going to break down Boolean logic, which is super important for both multiple-choice and free-response questions. Think of this as your quick-scan guide for tonight. Let's dive in!

#Boolean Variables and Relational Operators

#What are Boolean Variables?

Boolean variables are like light switches: they're either true or false. That's it! No in-between. They are fundamental for decision-making in code.

Key Concept

Boolean values are the backbone of conditional statements and loops. Understanding them is crucial for controlling the flow of your programs.

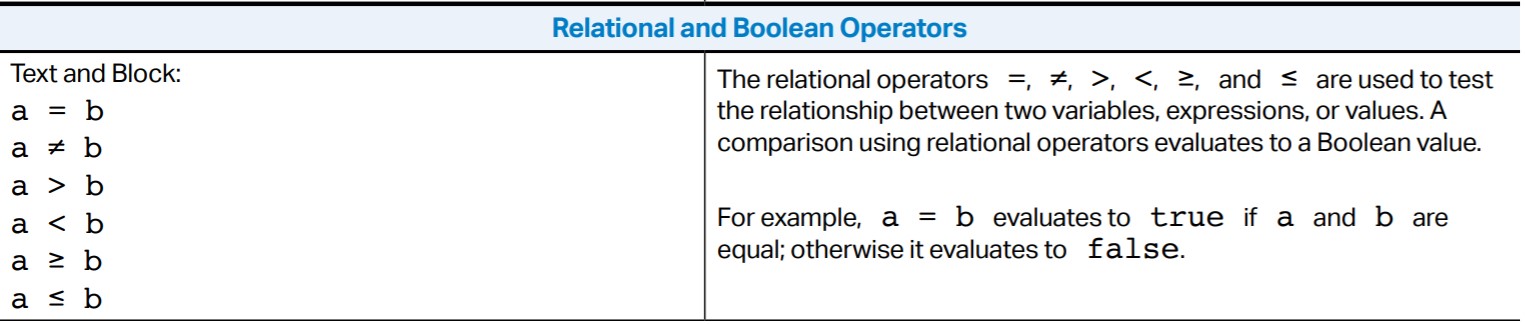

#Relational Operators

These are the tools we use to create Boolean values. They compare two values and return either true or false based on the relationship. Here’s a quick rundown:

Operator	Meaning	Example	Result (if x=10, y=5)
`==`	Equal to	`x == y`	`false`
`!=`	Not equal to	`x != y`	`true`
`>`	Greater than	`x > y`	`true`
`<`	Less than	`x < y`	`false`
`>=`	Greater than or equal to	`x >= y`	`true`
`<=`	Less than or equal to	`x <= y`	`false`

markdown-image

Example:

python
y = 5
x = 55
print(x > y) # Output: True

Exam Tip

Pay close attention to the difference between = (assignment) and == (equality). A common mistake is using the wrong one, which can lead to unexpected results.

#Logical Operators: NOT, AND, OR

These operators let us combine or modify Boolean expressions. Think of them as the glue that holds complex conditions together.

#NOT Operator

The NOT operator flips the Boolean value. true becomes false, and false becomes true. It's like the opposite button.

markdown-image

Example:

python
y = 5
print(not y >= 5) # Output: False

Quick Fact

NOT has the highest precedence among the logical operators. It's evaluated first.

#AND Operator

The AND operator combines two conditions. It only returns true if both conditions are true. If even one is false, the whole thing is false.

markdown-image

Example:

python
y = 5
x = 55
print(y >= 5 and x <= 44) # Output: False

Memory Aid

Think of AND like a strict parent: both conditions must be met to get a true result.

#OR Operator

The OR operator also combines two conditions. It returns true if at least one condition is true. It only returns false if both conditions are false.

markdown-image

Example:

python
y = 5
x = 55
print(y >= 5 or x <= 44) # Output: True

Memory Aid

Think of OR like a lenient parent: if either condition is met, you get a true result.

#

Exam Tip

Truth Tables

Truth tables are a great way to visualize how logical operators work:

A	B	NOT A	A AND B	A OR B
true	true	false	true	true
true	false	false	false	true
false	true	true	false	true
false	false	true	false	false

Memorize these! They can save you time on the exam.

#

Common Mistake

Common Pitfalls

Mixing up = and ==: Remember, = is for assignment, and == is for equality.
Incorrect operator precedence: NOT is evaluated before AND and OR.
Forgetting parentheses: Use parentheses to clarify the order of operations in complex expressions.
Misinterpreting complex conditions: Break down complex expressions into smaller parts to evaluate them correctly.

#Final Exam Focus

Okay, here’s what to really focus on:

Boolean Logic: Understand how relational and logical operators evaluate to true or false. This is foundational for many other concepts.
Truth Tables: Be able to quickly evaluate logical expressions using truth tables.
Operator Precedence: Remember the order: NOT, AND, then OR.
Conditional Statements: Practice writing if, else if, and else statements using Boolean conditions. This is a major application of Boolean logic.
Combining Concepts: Many questions will combine Boolean logic with other topics like loops and lists. Be prepared to apply your knowledge in different contexts.

#

Practice Question

Practice Questions

#Multiple Choice

Given x = 10 and y = 5, what is the result of the expression (x > 5) AND (y < 10)? a) true b) false c) Error d) None of the above
What is the result of the expression NOT (true OR false)? a) true b) false c) Error d) None of the above
Which of the following expressions will evaluate to true if a = 7 and b = 3? a) (a < 5) OR (b > 5) b) (a > 5) AND (b < 5) c) (a == 7) AND (b == 3) d) (a != 7) OR (b != 3)

#Free Response

Scenario: A program needs to check if a student is eligible for a scholarship. The student must have a GPA of 3.5 or higher AND a SAT score of 1200 or higher. Write a code segment (in pseudocode or Python) that takes GPA and SAT score as input and prints "Eligible" if the student meets the criteria, or "Not Eligible" otherwise.

Scoring:

Correct input: 1 point
Correct Boolean expression: 2 points
Correct conditional statement: 2 points
Correct output: 1 point

Example Solution (Python):

python
gpa = float(input("Enter GPA: "))
sat_score = int(input("Enter SAT score: "))

if (gpa >= 3.5 and sat_score >= 1200):
    print("Eligible")
else:
    print("Not Eligible")
