#AP Physics 1: Gravitational Fields - Your Last-Minute Guide 🚀

Hey there! Let's make sure you're feeling awesome about gravitational fields for your AP Physics 1 exam. This guide is designed to be super clear, quick to review, and totally focused on what you need to know. Let's get started!

#1. Gravitational Force and Fields

#1.1. What is Gravitational Force?

• Definition: The force of attraction between any two objects with mass.
• Direction: Always acts vertically downwards, towards the center of the planet or celestial body. ⬇️
• Magnitude: Given by $F = mg$, where:
  • $F$ is the gravitational force (weight).
  • $m$ is the mass of the object.
  • $g$ is the gravitational field strength (acceleration due to gravity).

#1.2. Free Fall

• Definition: When the only force acting on an object is gravity. 🪂
• Acceleration: In free fall, the object's acceleration is equal to the gravitational field strength ($g$).
• Key Idea: All objects in free fall near the Earth's surface accelerate at approximately 9.8 m/s², regardless of their mass (ignoring air resistance).

#1.3. Gravitational Field (g)

• Definition: A region of space where a mass experiences a gravitational force. It's a vector field, meaning it has both magnitude and direction.
• Source: Created by any object with mass. The more massive the object, the stronger the field it creates.
• Direction: Points towards the center of the object creating the field.

#2. Calculating Gravitational Field Strength

#2.1. Newton's Law of Universal Gravitation

• Formula: $F = G \frac{m_1 m_2}{r^2}$, where:
  • $F$ is the gravitational force between two masses.
  • $G$ is the universal gravitational constant ($6.67 \times 10^{-11} Nm^2/kg^2$).
  • $m_1$ and $m_2$ are the masses of the two objects.
  • $r$ is the distance between the centers of the two masses.

#2.2. Deriving the Gravitational Field Equation

• Starting Point: Newton's Second Law ($F = ma$) and Newton's Law of Universal Gravitation.
• Orbital Scenario: Consider a satellite orbiting a planet. The gravitational force is the only force acting on the satellite, causing its centripetal acceleration.

• Derivation Steps:
  1. $F = G \frac{m_1 m_2}{r^2}$ (Gravitational Force)
  2. $F = m_1 a$ (Newton's Second Law, applied to the satellite)
  3. $m_1 a = G \frac{m_1 m_2}{r^2}$ (Equating the two forces)
  4. $a = G \frac{m_2}{r^2}$ (Solving for acceleration)
  5. $g = G \frac{M}{r^2}$ (Replacing $a$ with $g$, and $m_2$ with $M$ for the mass of the planet)

#2.3. The Gravitational Field Equation

• Formula: $g = G \frac{M}{r^2}$, where:
  • $g$ is the gravitational field strength (acceleration due to gravity).
  • $G$ is the universal gravitational constant ($6.67 \times 10^{-11} Nm^2/kg^2$).
  • $M$ is the mass of the planet or celestial body creating the field.
  • $r$ is the distance from the center of the planet to the point where we're measuring the field (often the radius of the planet).

This equation is super important! It shows that the gravitational field strength depends on the mass of the planet and the distance from its center. It's a cornerstone concept for many exam questions.

#2.4. Key Insights

• Mass Independence: The acceleration due to gravity ($g$) is independent of the mass of the object experiencing the field. This is why all objects fall at the same rate in a vacuum.
• Distance Matters: The gravitational field strength decreases with the square of the distance from the center of the planet. Double the distance, and the field strength becomes one-fourth.
• Radial Distance: The $r$ in the equation is the distance from the center of the planet. If an object is above the surface, you need to add the height to the planet's radius.

#3. Visualizing Gravitational Fields

#3.1. Field Lines

• Direction: Field lines point towards the center of the mass creating the field. ➡️
• Strength: The closer the field lines, the stronger the gravitational field. 📏

Caption: Gravitational field lines always point towards the center of mass. The closer the lines, the stronger the field.

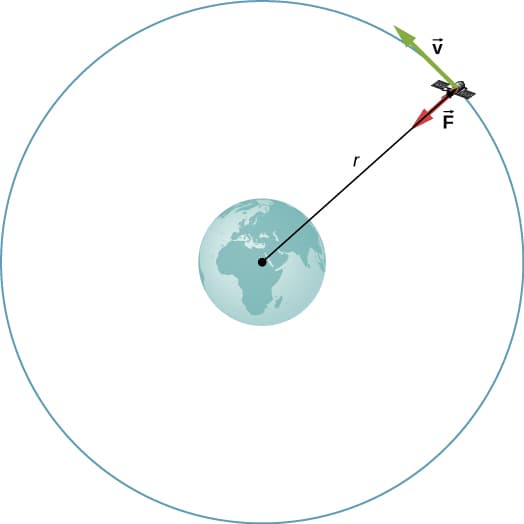

Caption: A satellite orbiting a planet. The gravitational force is the only force acting on the satellite, causing its centripetal acceleration.

#4. Connecting Concepts

• Kinematics: The acceleration due to gravity ($g$) is the same acceleration we use in kinematic equations when dealing with free fall. 🔄
• Circular Motion: Gravitational force provides the centripetal force needed for objects to orbit a planet or star. 🪐
• Energy: Gravitational potential energy is related to the work done against gravity and is crucial in understanding orbital mechanics. ⚡

#5. Practice Problems

Practice Question

Multiple Choice Questions

1. How does the gravitational acceleration ($g$) on the surface of a planet change if the mass of the planet is doubled? a) It remains the same b) It is halved c) It is doubled d) It is quadrupled

2. A planet has a mass of $6 \times 10^{24}$ kg and a radius of $6 \times 10^6$ m. Calculate the gravitational acceleration ($g$) on its surface. a) 7.2 m/s² b) 9.8 m/s² c) 10.4 m/s² d) 18.6 m/s²

3. How does the strength of the gravitational field change if the distance between two masses is doubled? a) It remains the same b) It is halved c) It is quartered d) It is doubled

Free Response Question

A satellite of mass $m$ is in a circular orbit around a planet of mass $M$ and radius $R$. The satellite is at a height $h$ above the surface of the planet.

(a) Derive an expression for the gravitational force acting on the satellite in terms of $G$, $M$, $m$, $R$, and $h$.

(b) Derive an expression for the orbital speed of the satellite in terms of $G$, $M$, $R$, and $h$.

(c) If the satellite's orbital radius is doubled, how does its orbital speed change? Justify your answer.

Answer Key and Scoring Rubric

Multiple Choice Answers:

1. c) It is doubled
2. b) 9.8 m/s²
3. c) It is quartered

Free Response Scoring Rubric:

(a) Gravitational Force (3 points)

• 1 point: Correctly identifying the distance as $(R + h)$.
• 1 point: Using the correct form of Newton's Law of Universal Gravitation.
• 1 point: Correct final expression: $F = G \frac{Mm}{(R+h)^2}$

(b) Orbital Speed (4 points)

• 1 point: Setting the gravitational force equal to the centripetal force.
• 1 point: Correct expression for centripetal force: $F_c = m\frac{v^2}{r}$
• 1 point: Correctly equating the forces: $G \frac{Mm}{(R+h)^2} = m\frac{v^2}{(R+h)}$
• 1 point: Correct final expression: $v = \sqrt{\frac{GM}{R+h}}$

(c) Change in Orbital Speed (3 points)

• 1 point: Recognizing that doubling the orbital radius means replacing $(R + h)$ with $2(R + h)$.
• 1 point: Substituting $2(R + h)$ into the speed equation: $v_{new} = \sqrt{\frac{GM}{2(R+h)}}$
• 1 point: Correct conclusion: The orbital speed decreases by a factor of $\sqrt{2}$ when the orbital radius is doubled.

#6. Final Exam Focus

#6.1. High-Priority Topics

• Gravitational Force: Understand its direction, magnitude, and how it relates to weight.
• Gravitational Field Strength ($g$): Be able to calculate it using $g = G \frac{M}{r^2}$ and understand how it changes with mass and distance.
• Free Fall: Know that all objects in free fall accelerate at the same rate (ignoring air resistance).
• Orbital Mechanics: Understand how gravitational force provides the centripetal force for orbital motion.

#6.2. Common Question Types

• Conceptual Questions: Understanding how $g$ changes with mass and distance, and the relationship between gravitational force and weight.
• Calculation Problems: Using the equations for gravitational force and field strength to solve for unknown quantities.
• Derivation Questions: Deriving the gravitational field equation from Newton's Laws.
• Combining Concepts: Applying your knowledge of gravity to problems involving kinematics, circular motion, and energy.

#6.3. Last-Minute Tips

• Time Management: Quickly identify what each question is asking, and prioritize questions you know you can solve quickly.
• Units: Always include units in your calculations and answers. Double-check your unit conversions.
• Free-Body Diagrams: Draw free-body diagrams to help visualize the forces acting on an object.
• Read Carefully: Pay close attention to the details of the question. What is it asking for? What information is given?
• Stay Calm: You've got this! Take deep breaths and approach each question methodically. 🧘

Good luck on your exam! You're going to do great! 🎉
